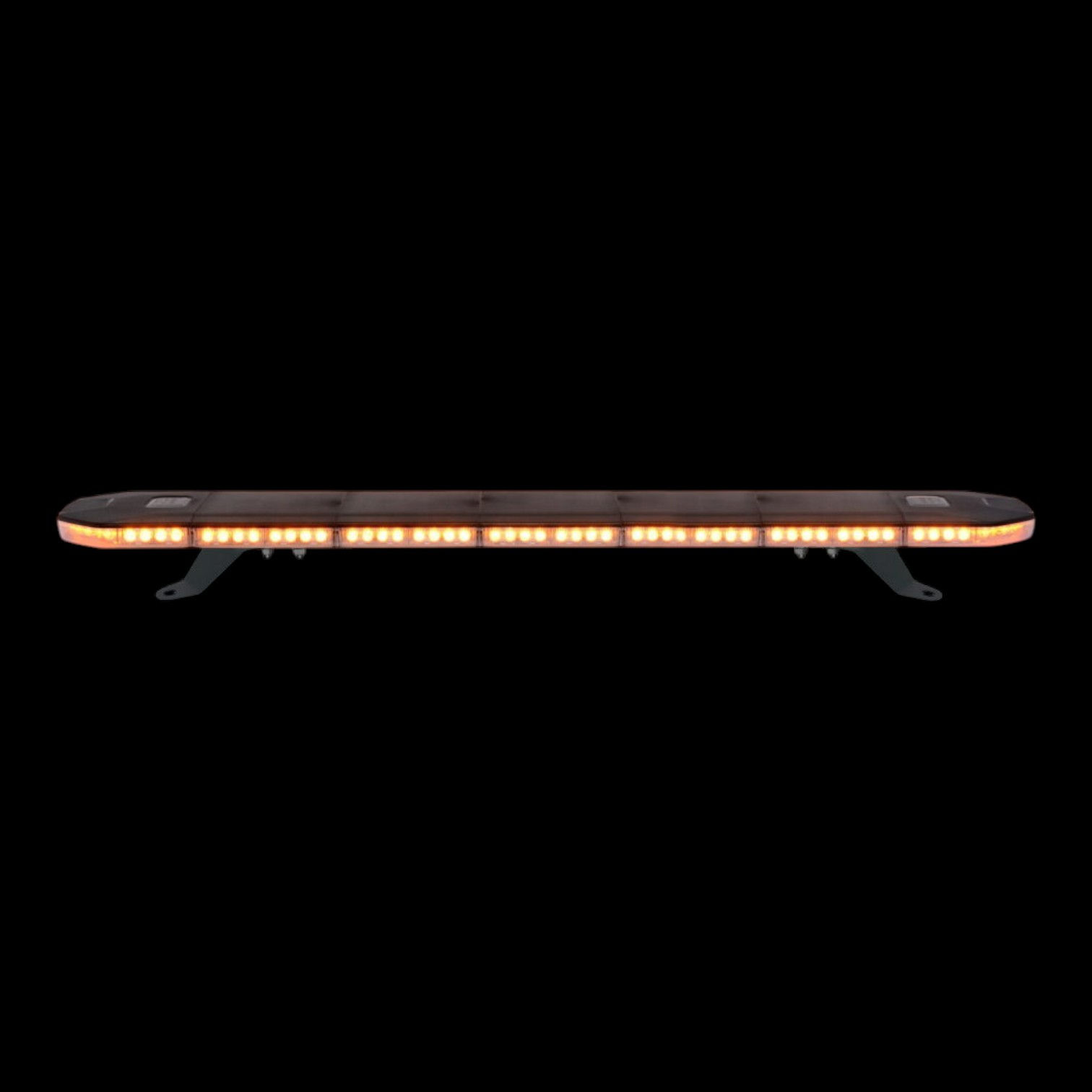

FleetMax™ SlimLine LED Lightbars are simple to install, straight forward to control and come completed with high intensity warning light output along with the option for an STI Version (Stop, tail & indicator functions.) The FleetMax™ lightbar is Optioned out best with the lightbar controller for ease of use.

Manufactured to ECE R10, & R65 Class 2 approved performance and constructed of super strong polycarbonate plastics which makes the lens near impossible to crack or smash ensuring great reliability in the harshest environments.

Simple 3 wire connection: Positive, Negative, Flash Pattern which can be wired to your own switch or you can purchase a controller panel(Only available for non STI Version). (STI Version only) There are then a further 5 wires that are to be connected to your vehicles rear lighting clusters or trailer wiring relay to control the stop, tail and indicators inside the light bar.

Main Features:
– Multi voltage 12/24Vdc | 10-30Vdc
– (STI Version only) STI Stop, Tail, Indicator function
– Slimline body at only 37mm high, 220mm Wide
– 4-LED TIR module optics for superior directional light output
– 14 Selectable flash patterns
– Traffic director modes
– ECE R65 Class 1 & 2

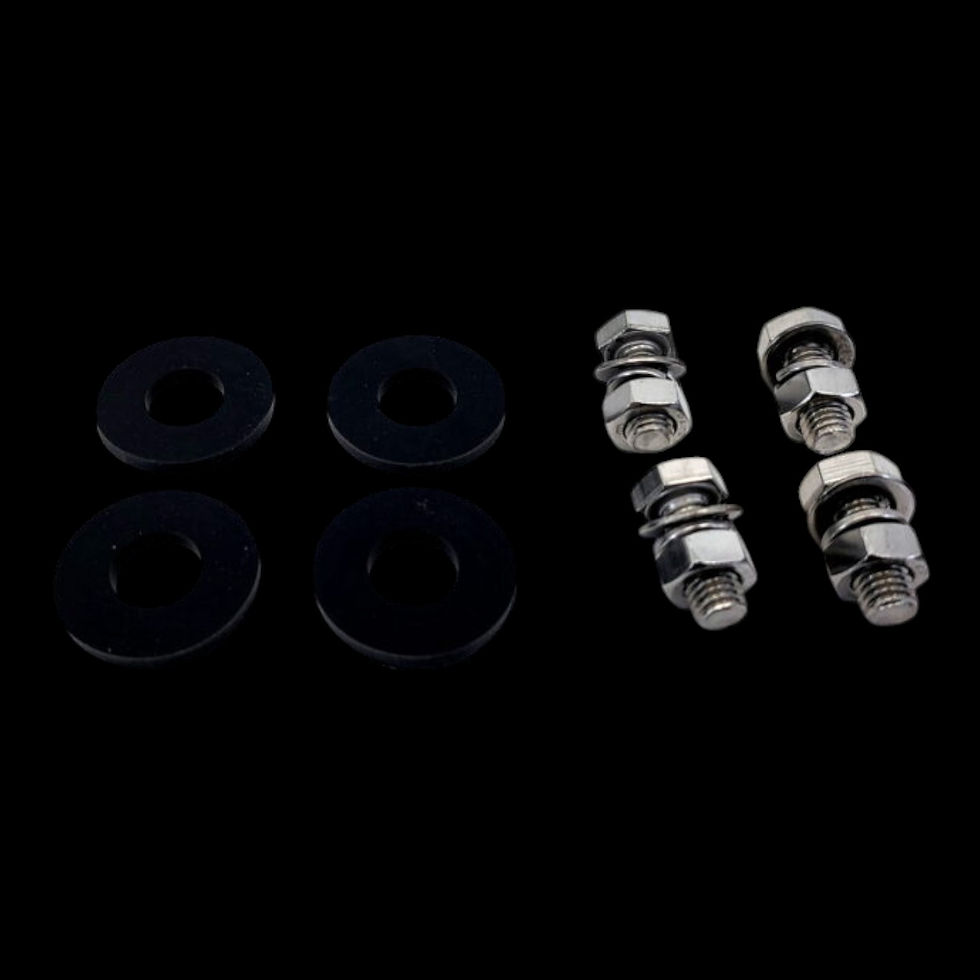

– Mounting type: Bolt/Bracket
– 3 Metres of cable

Control Options:
As standard the lightbar is suppled with 3 metres of cable that can be connected to your own switch. We also have a controller available however it is only available for lightbars without STI functions.

Digital Controller Switch Pad for FleetMax™ LED Lightbars
– Stylish, shaped as a lightbar itself, replicates the current flashing pattern.
– Switches include lightbar on/off, flashing pattern select & digital display on/off switch.
– Easy to switch between the traffic director mode patterns and flashing patterns.
– Simple to install, positive & negative input. Positive & negative output plus yellow wire that connect directly to the lightbar.
– Supplied with 1.5 metre of input and output cables.
– Mounting: Supplied with mounting back plate that can be screwed or glued to a surface. The controller is attached to the back plate by a magnet. The back plate can be removed and the controller be glued directly to the mounting surface.
(Only available for lightbars without the STI function)

Lengths available;
1220mm/ 4ft
1524mm/ 5ft

Width:
220mm / 8.6 inch Wide

Height:
37mm / 1.45 inch

Height Including brackets:
81mm / 3.2 inch

Approvals:
– E9
– ECE EMC R10
– ECE R65 Class 1 & 2
– CISPR 25 Class 3
– IP67
